Engineering high-precision SS 430 induction base plates, pressure cooker components, deep-drawn vessels, and steamer inserts for global cookware brands, private-label importers, and appliance OEMs.
Every component is stamped, drawn, perforated, or embossed in our owned manufacturing units. We manufacture build-to-print parts based on your engineering drawings, technical specifications, and strict quality tolerances.

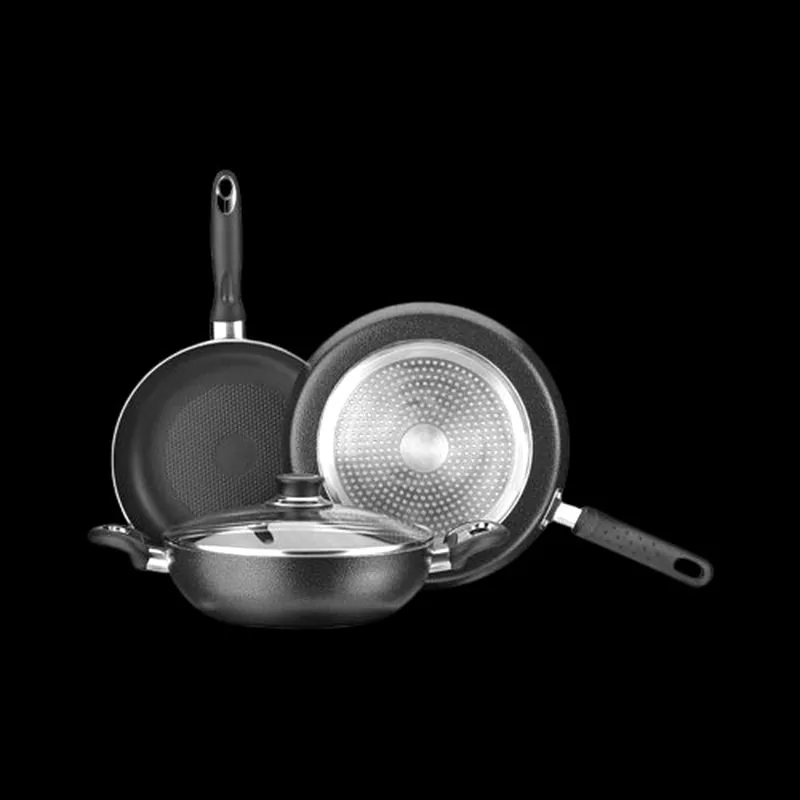

Ferritic stainless steel discs for non-stick fry pans, tawas, kadhais, saucepans, and pressure cookers. Flatness tolerances prevent delamination and ensure thermal transfer over years of thermal cycling.
SS 430 (EN 1.4016) · Custom Diameters · Custom Perforations · Weld-Ready

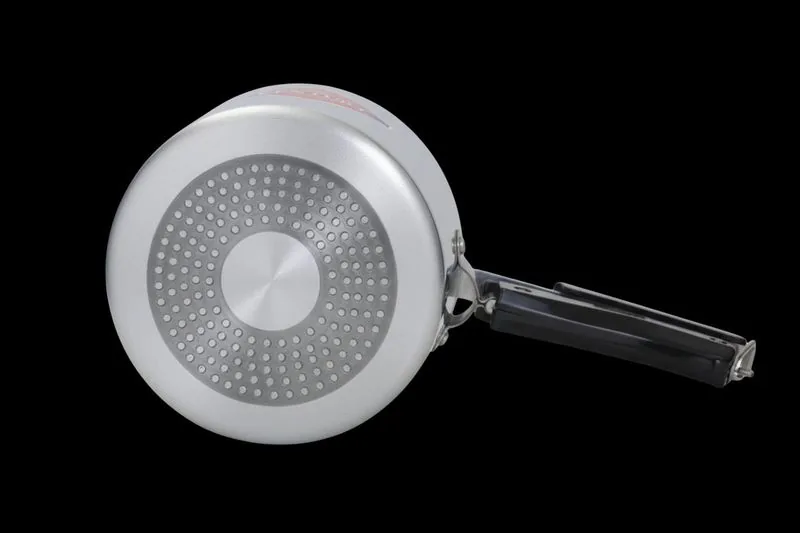

Engineered lids, heavy-duty base discs, gasket rings, and support assemblies built to withstand 1–2 bar pressure differentials. Dimensional stability prevents distortion during repetitive pressure cycles.
SS 304 / SS 430 · Flat & Domed Profiles · Embossed Logos

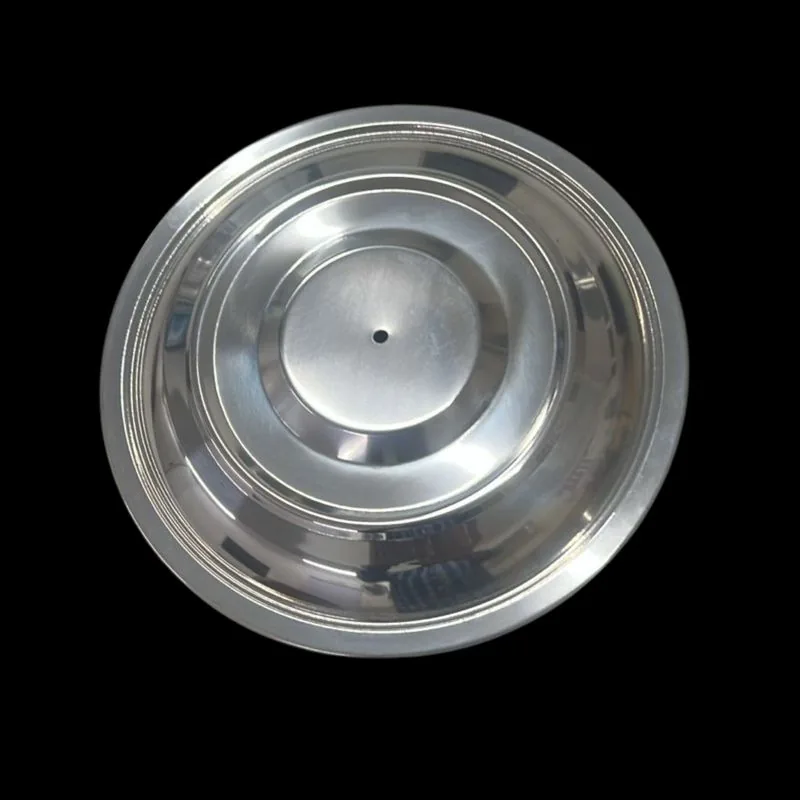

Precision-stamped cookware lids and edge profiles. Smooth, rolled edges ensure airtight seating against cookware bodies, enhancing aesthetic appeal and commercial durability.
SS 304 / SS 430 · Rolled Rim · Tri-Ply Compatible · Custom Finish

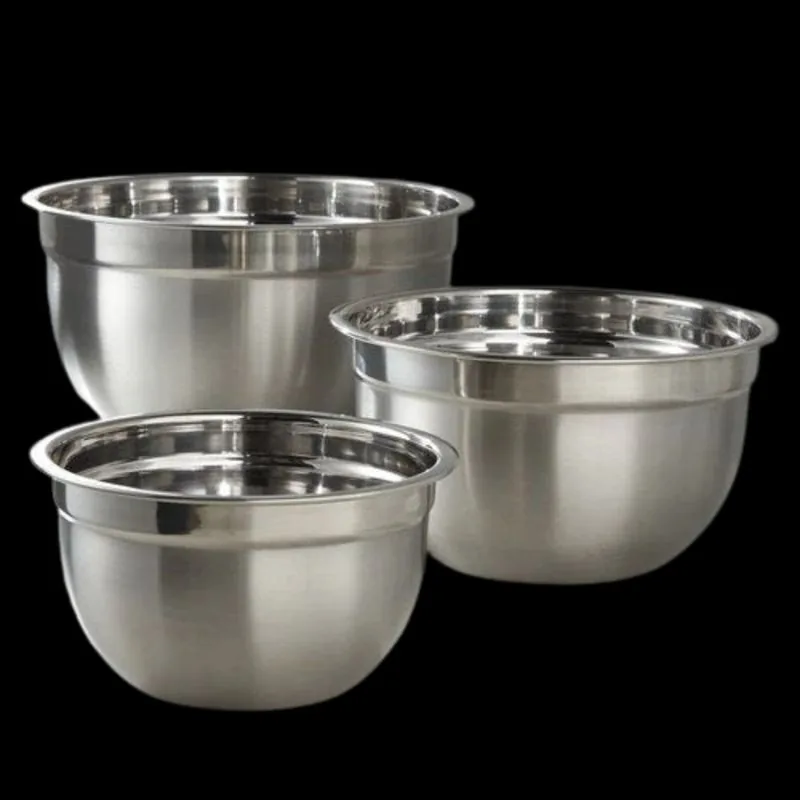

Seamless deep-drawn rice cooker liners, mixing bowls, kettle bodies, and industrial housings. Multi-stage tooling guarantees uniform wall thickness and high structural integrity.
Seamless Draw · Multi-Stage Tooling · Tight Tolerance Control

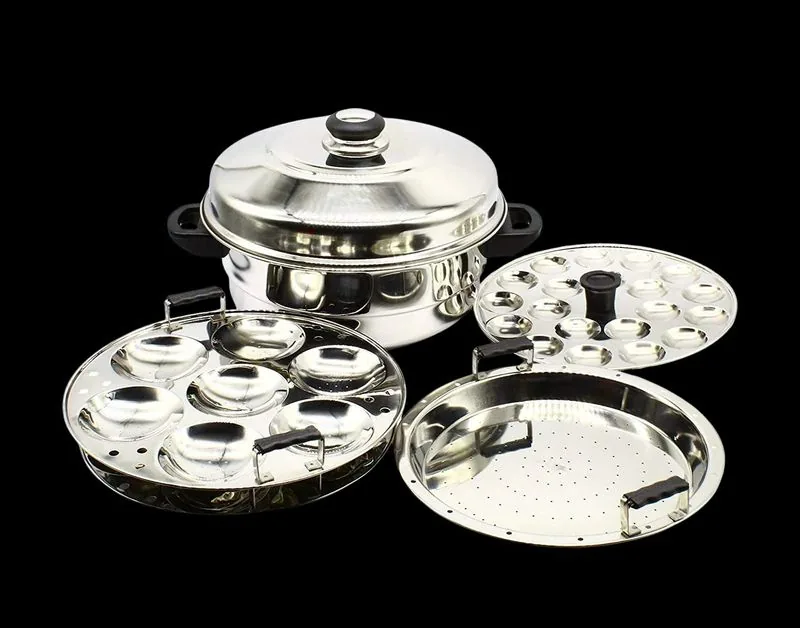

Precision perforated plates and cavity inserts for multi-cookers, steamers, and food warmers. Uniform hole positioning guarantees consistent steam distribution across commercial food production lines.
Custom Cavity Pitch · Perforated or Plain · Stackable Designs

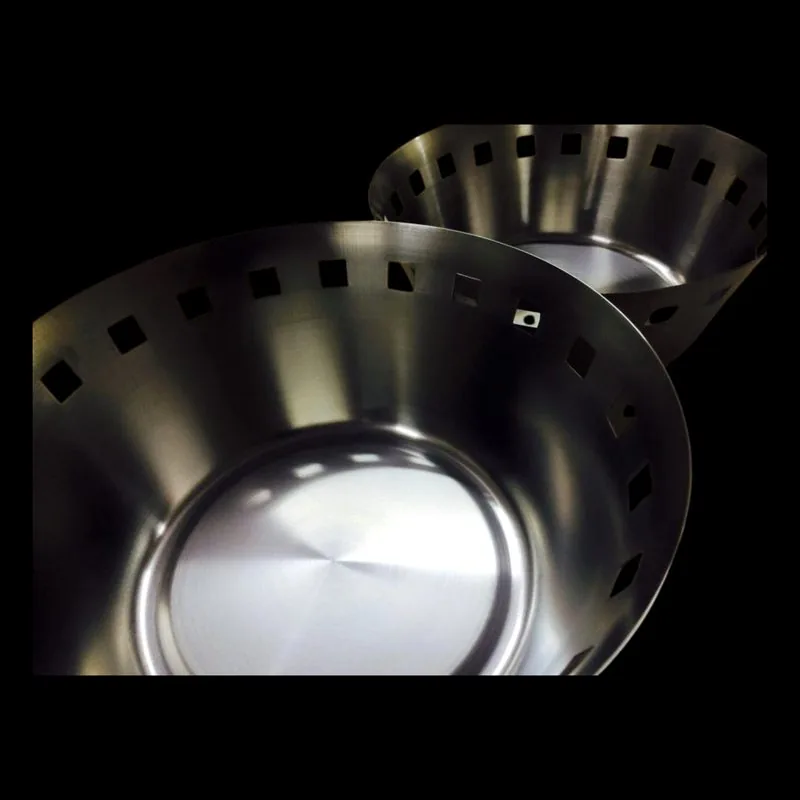

Commercial-grade service trays, bread baskets, dome food covers, measuring bowls, and fryer baskets for hotels, cloud kitchens, and catering operations. Built for heavy commercial dishwashing cycles.
SS 304 Grade · Mirror or Satin Finish · Commercial Duty
Below are standard reference patterns from live OEM programs. Perforation ratios, surface embossing depth, and outer diameters are engineered around your specific bonding method and induction cooktop coil configuration.

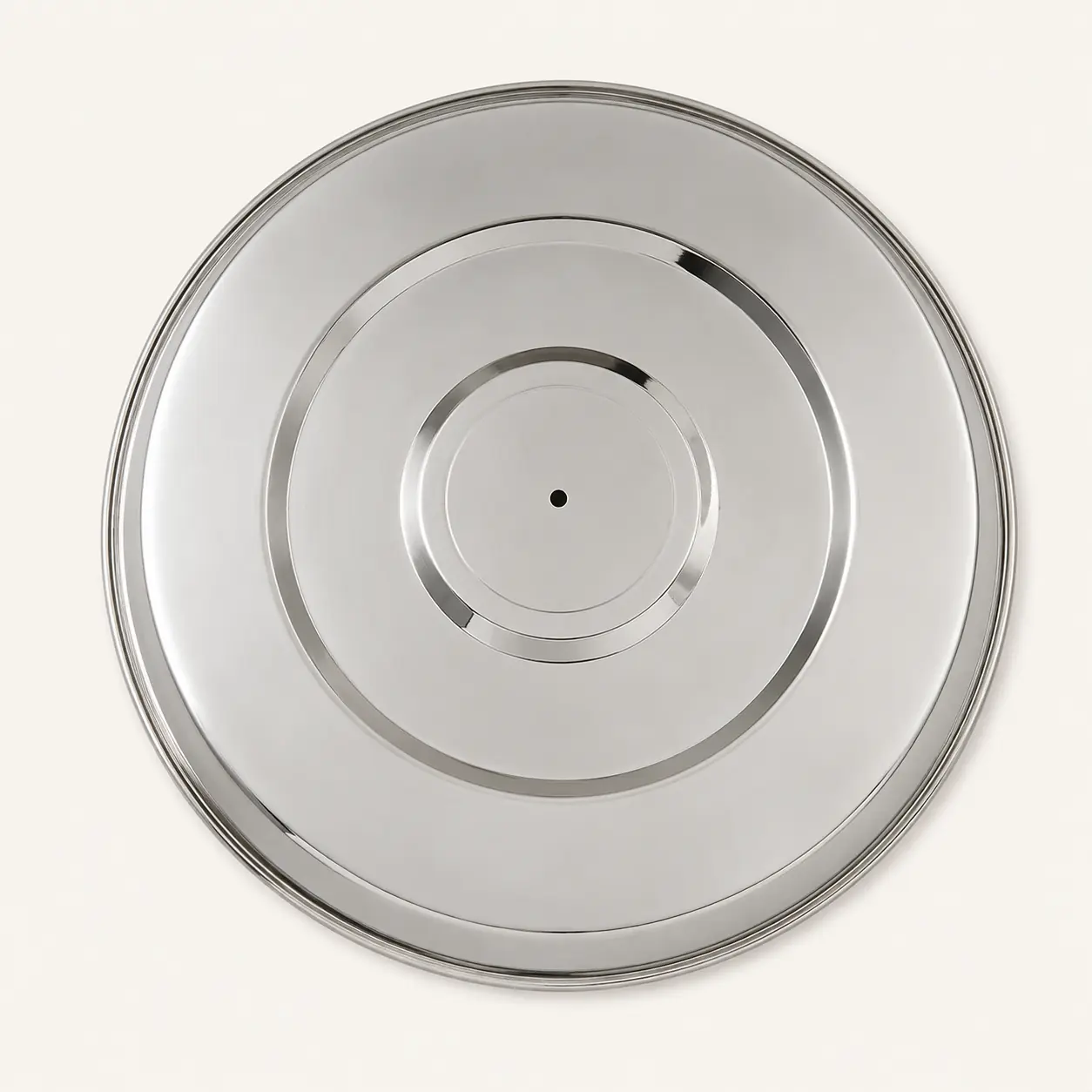

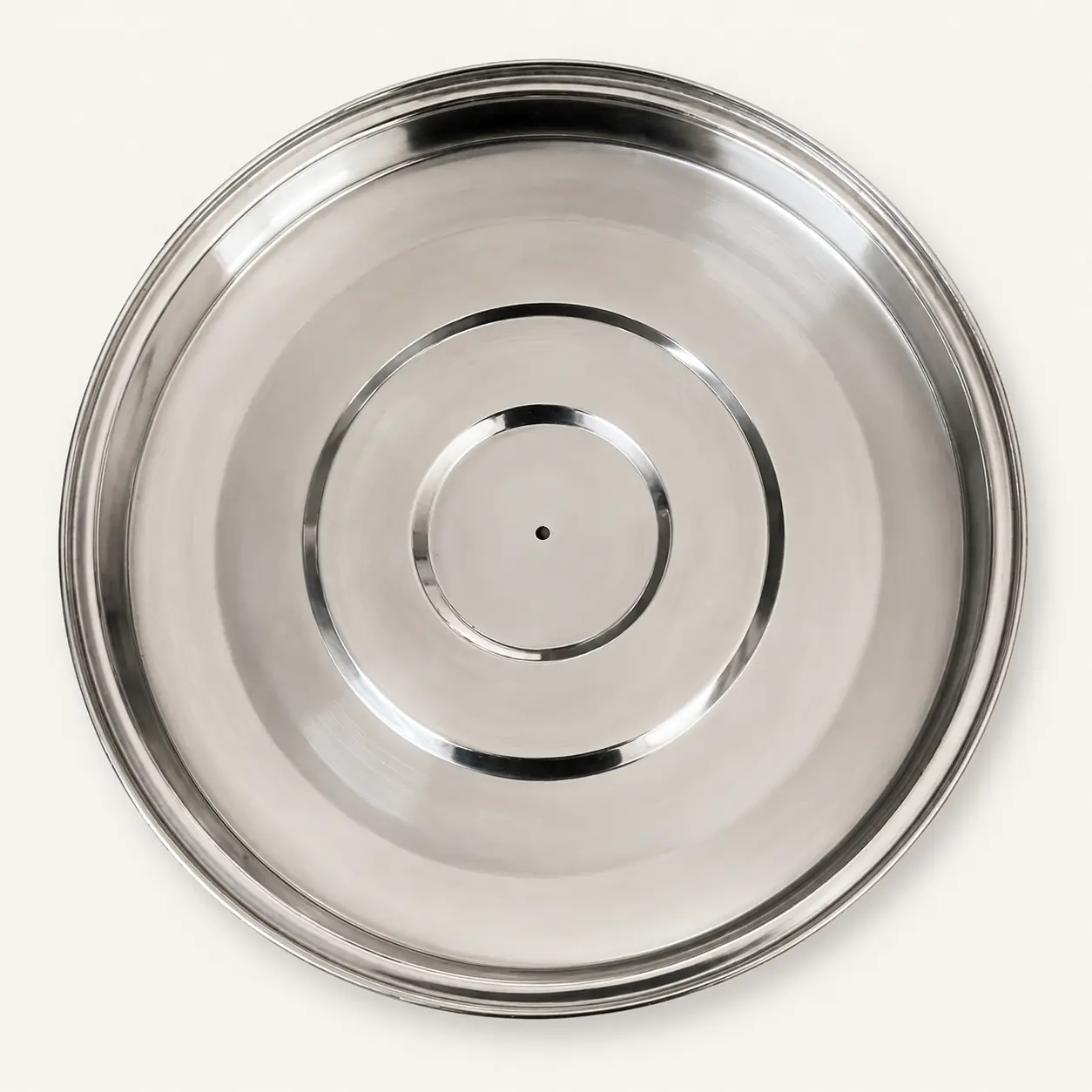

Manufactured to match your vessel diameter, cavity depth, stacking height, and lid sealing profiles — ensuring long-term batch interchangeability for appliance brands.

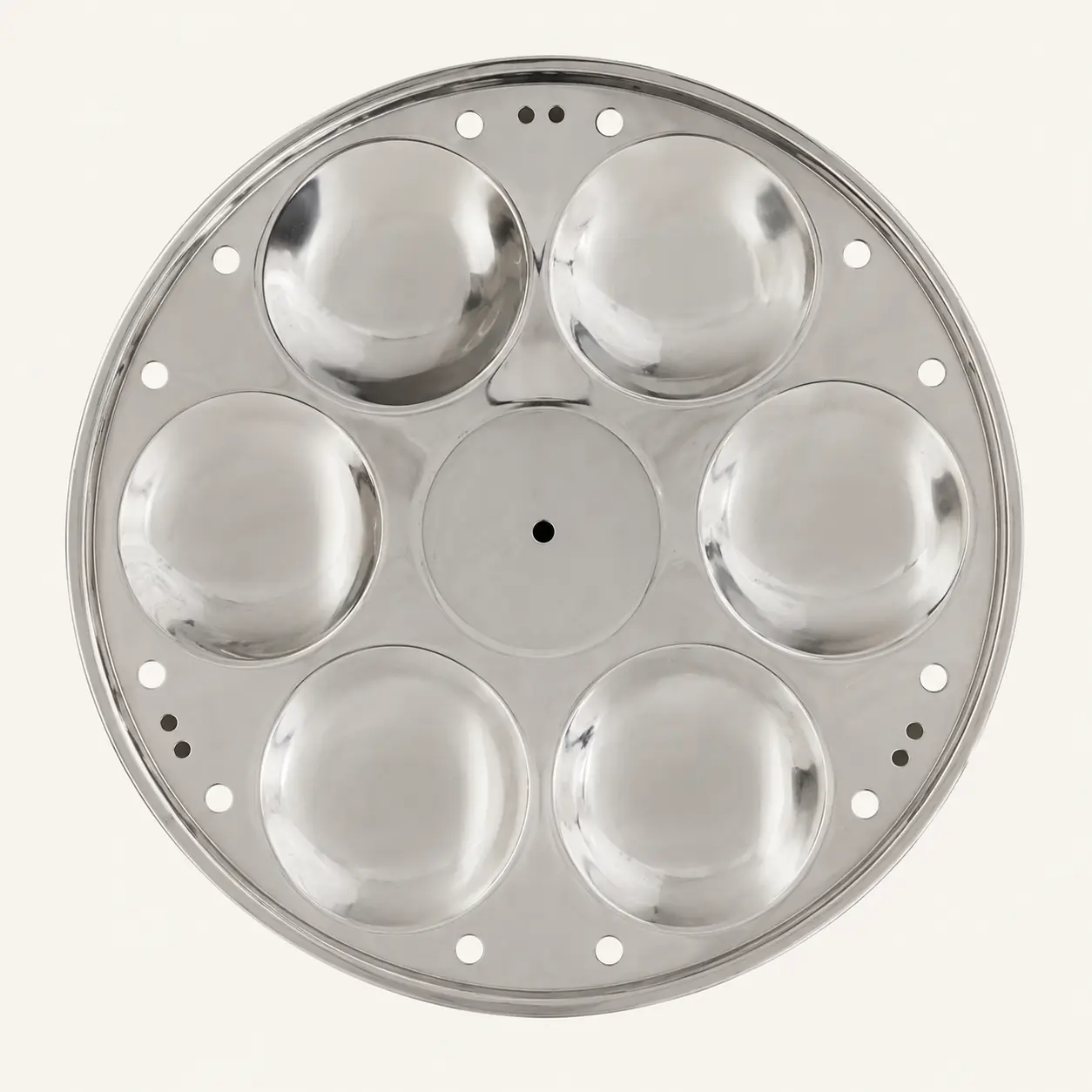

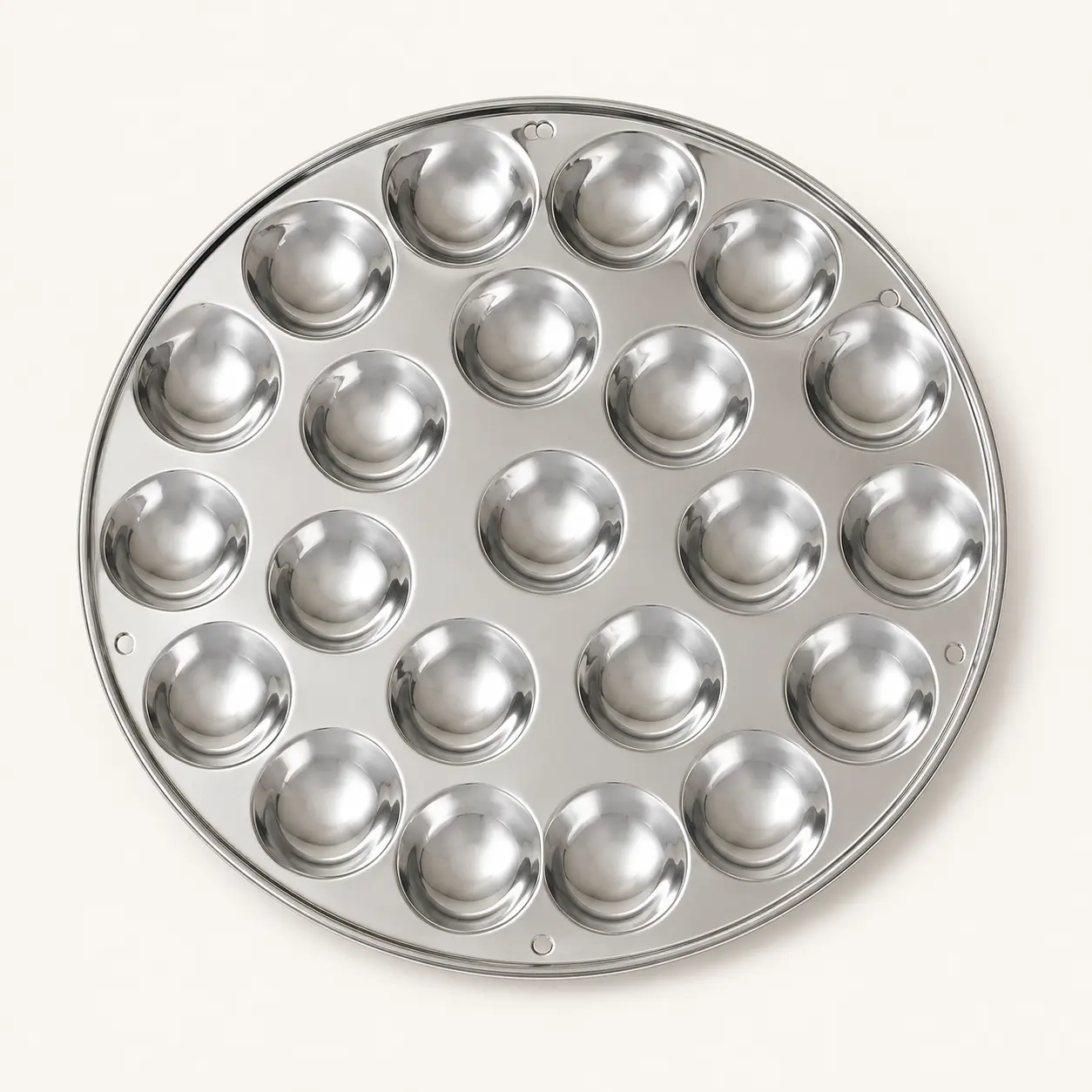

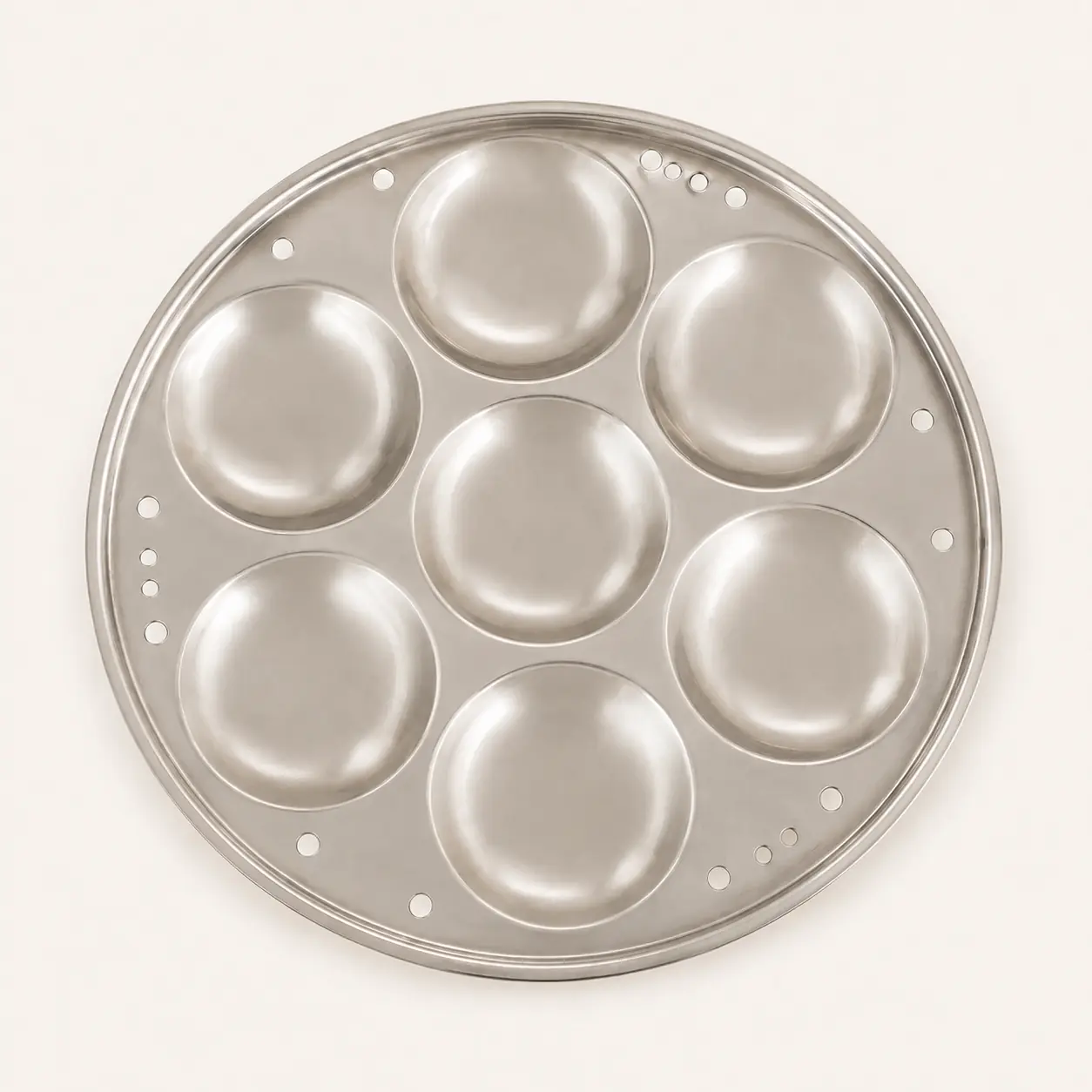

Deep-drawn cavity plates with repeatable draw depth and clean stacking clearance. Pitch and volume are matched to your appliance specifications for interchangeable long-term supply.
6-Cavity · 7-Cavity · Mini-Idli · Custom Pitch

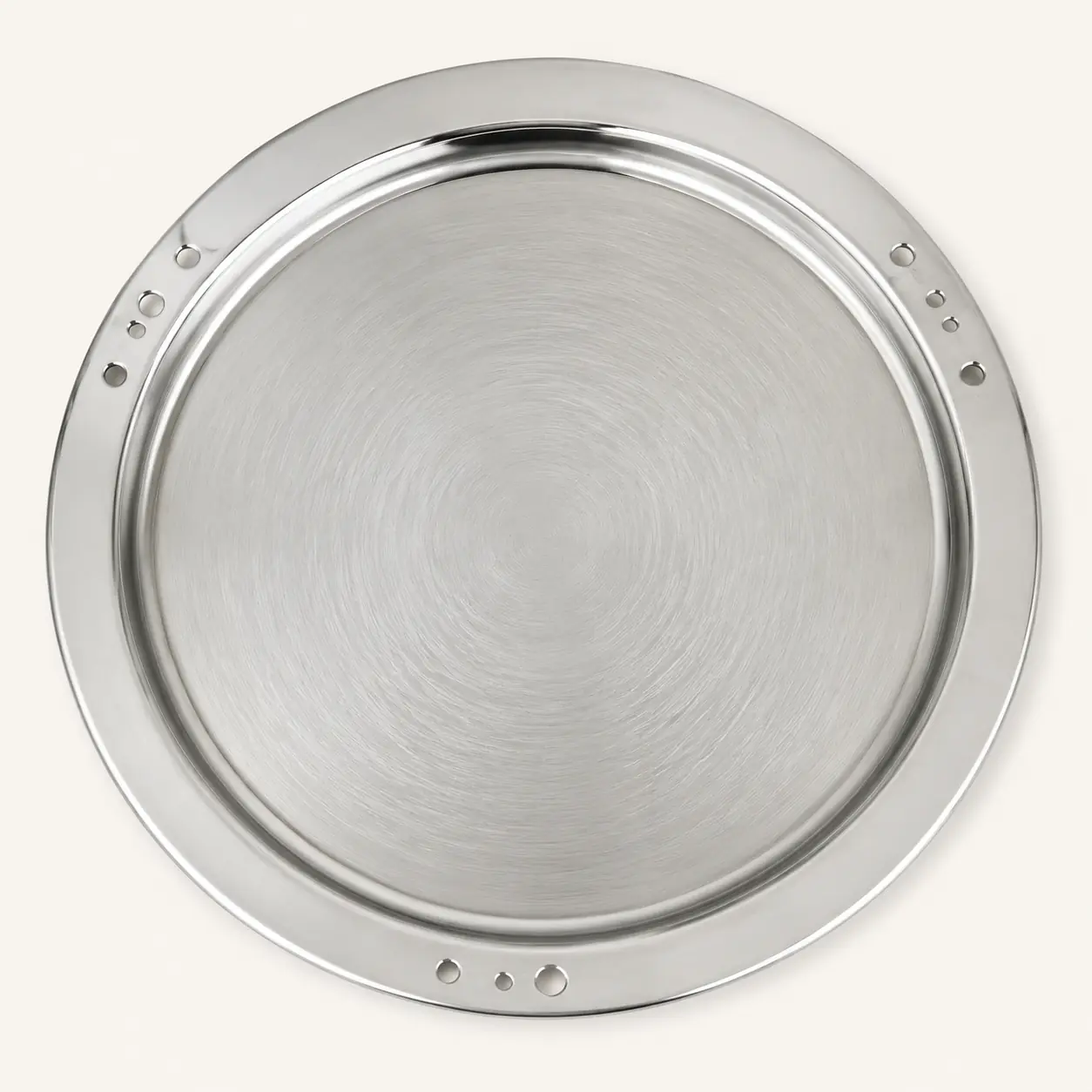

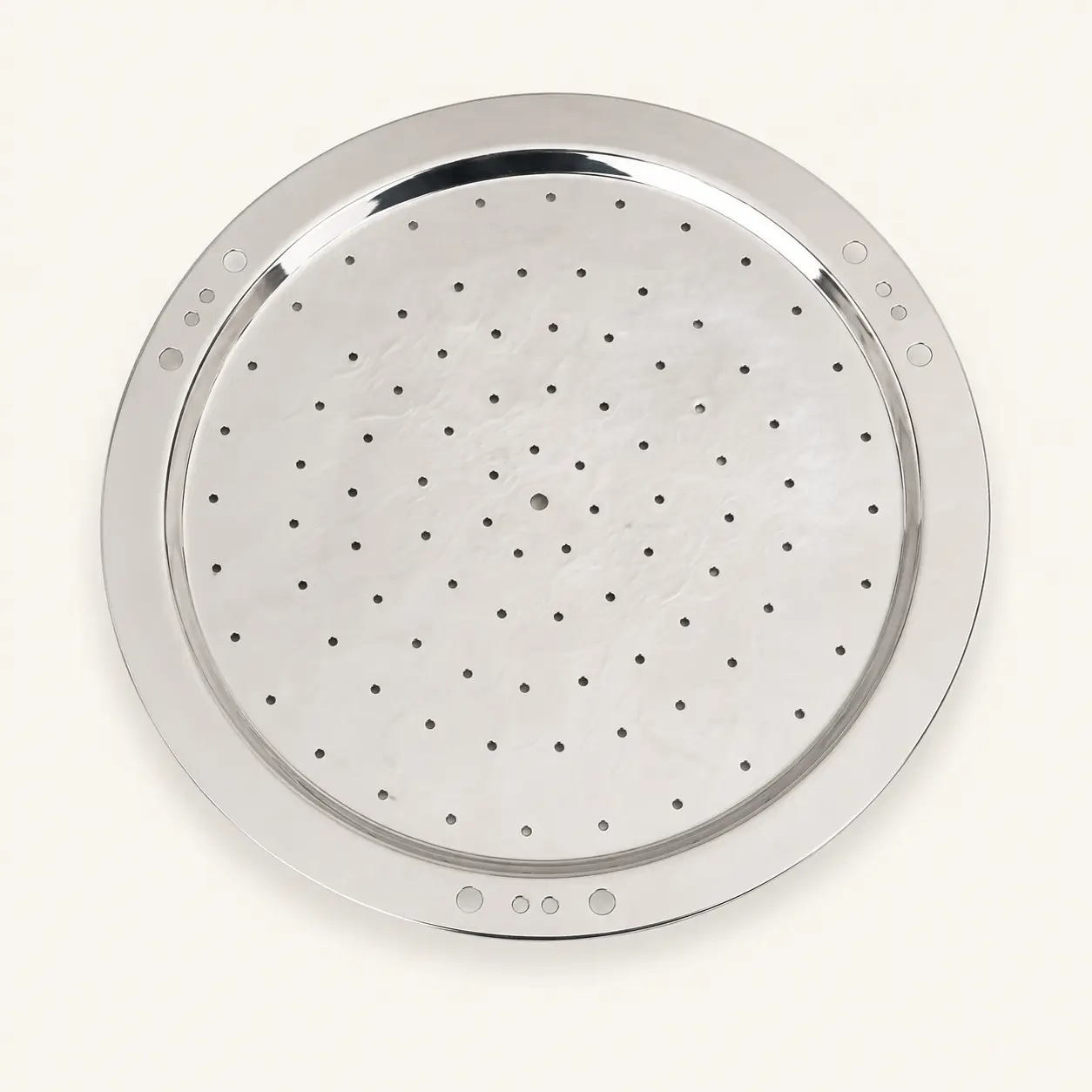

Plain and perforated inserts designed for steaming, vegetable processing, and multi-cooker appliances. Open-area hole patterns are optimized to deliver uniform heat flow without compromising structural rigidity.
Plain · Perforated · Formed Rim · Stackable
Operating heavy hydraulic and power presses with complete in-house toolroom operations. We serve domestic cookware leaders, global private labels, and engineering equipment clients.
Burr-free shearing and circular cutting establishing exact blank diameters, preserving edge profile integrity for downstream drawing and impact bonding.
High-tonnage stamping of functional heat-transfer contact patterns, anti-slip textures, capacity indicators, and custom buyer logos in a single press stroke.
Seamless transformation of flat sheet blanks into deep vessels, rice cooker inner pots, and drawn housings without structural thinning or stress fractures.
Automated power press lines configured for high-speed production runs. Tooling stays secured in-house, minimizing setup times and lowering piece-part costs.
From initial drawing validation to scheduled container dispatch — every step is verified against strictly defined quality parameters.
In-house toolmakers review your CAD drawing, physical sample, or datasheet for draw ratio, bend allowance, and material feasibility.
Dies and punches are machined inside our own toolroom, reducing tooling lead times while safeguarding buyer intellectual property.
Pre-production sample batch submitted with dimensional inspection records and Mill Test Reports (MTR) for buyer sign-off.
Scheduled press runs across dual facilities in Mumbai and Sarigam, Gujarat with batch-level traceability and export packing.
Induction efficiency depends on magnetic permeability and chemical stability. Below is the material comparison table for procurement and engineering teams.
| Property / Specification | SS 430 (Induction Base Grade) | SS 304 (Austenitic Grade) | Mild Steel (MS) |
|---|---|---|---|
| International Standard | EN 1.4016 · AISI 430 | EN 1.4301 · AISI 304 | IS 2062 · ASTM A36 |
| Induction Compatibility | Yes — Highly Ferromagnetic | No — Non-Magnetic | Yes — Ferromagnetic |
| Magnetic Permeability | High | Low / Negligible | High |
| Corrosion Resistance | High (16–18% Chromium) | Very High (18–20% Cr, 8–10.5% Ni) | Low (Requires Coating) |
| Tensile Strength (MPa) | 430 – 600 MPa | 515 – 720 MPa | 400 – 550 MPa |
| Yield Strength 0.2% (MPa) | ≥ 260 MPa | ≥ 205 MPa | ≥ 250 MPa |
| Elongation (A50) | ≥ 22% | ≥ 40% | ≥ 20% |
| Deep-Draw Formability | Excellent | Excellent | Good |
| Food Contact Safety | Yes (EN 1.4016 Certified) | Yes (Food Grade Standard) | Requires Protective Barrier |
Induction hobs generate heat by inducing eddy currents inside ferromagnetic materials. SS 304 is austenitic and non-magnetic, making it incapable of heating directly on an induction coil. SS 430 provides the high magnetic permeability necessary to absorb electromagnetic energy, while the aluminium cookware body above it rapidly distributes thermal energy evenly across the cooking surface. Substituting prime SS 430 with uncertified or lower-grade coils causes field bond failures and warping — Jagruti Steels utilizes certified, traceable SS 430 coil stock with complete batch documentation.
Engineered for commercial kitchen and hotel service environments — tested for high-frequency industrial dishwasher cleaning cycles, impact durability, and long-term finish retention.

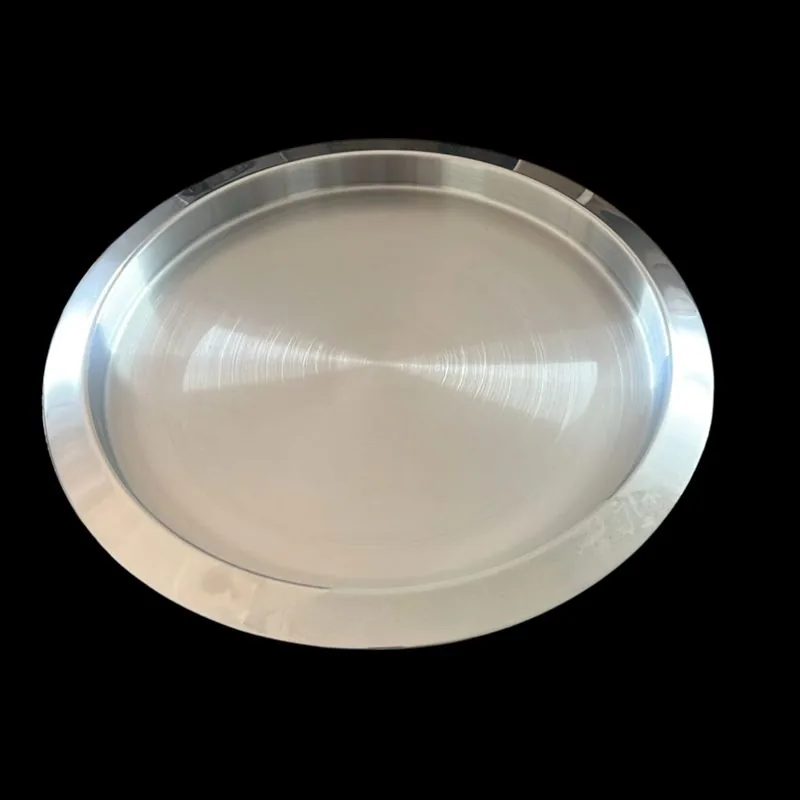

Rolled-rim stainless steel trays designed for stability during high-frequency beverage service and commercial washing.
SS 304 · Custom Dimensions · Bulk Supply
Deep-drawn perforated designs engineered to resist thermal warping under repeated commercial dishwasher heat cycles.
Deep Drawn · Perforated · Stackable

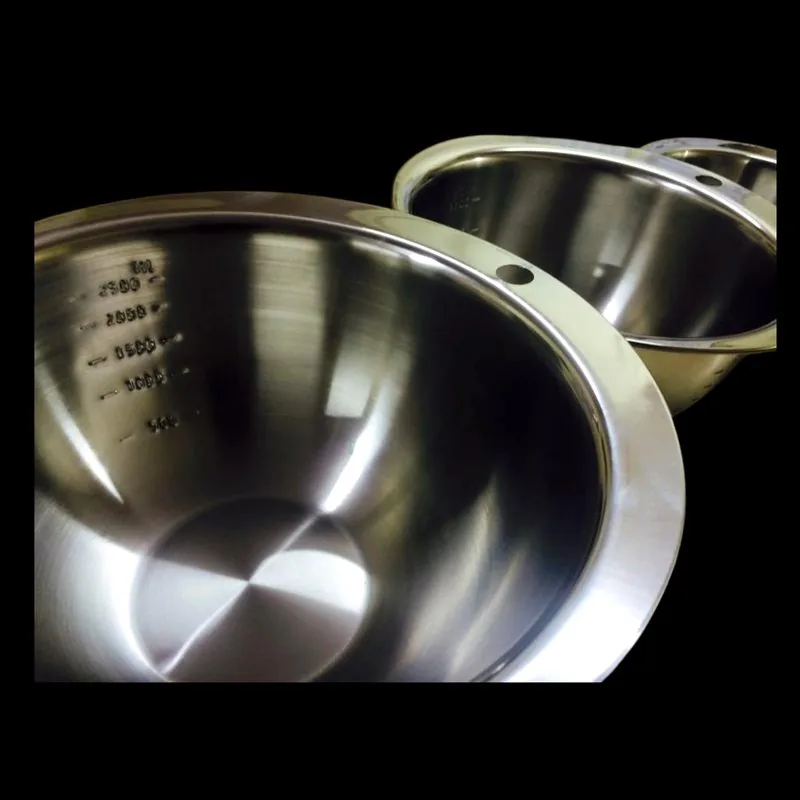

Stamped measuring bowls featuring clear, embossed volume graduations that remain legible over years of scrubbing.
Deep Drawn · Embossed Markings · Food Grade

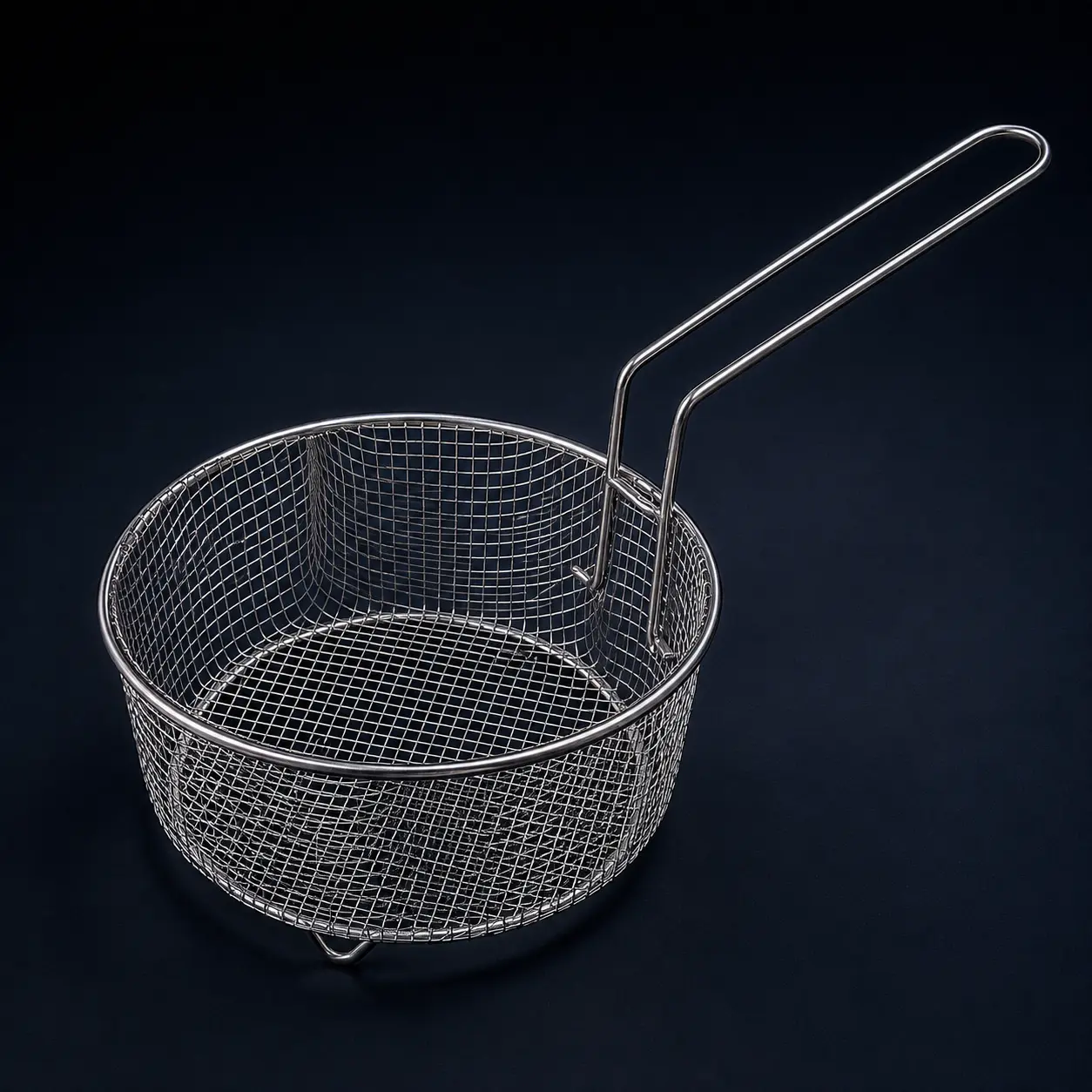

Heavy-duty wire mesh construction with reinforced handles for high-temperature deep frying lines in commercial kitchens.
Heavy Wire Mesh · Reinforced Handle · Custom Size

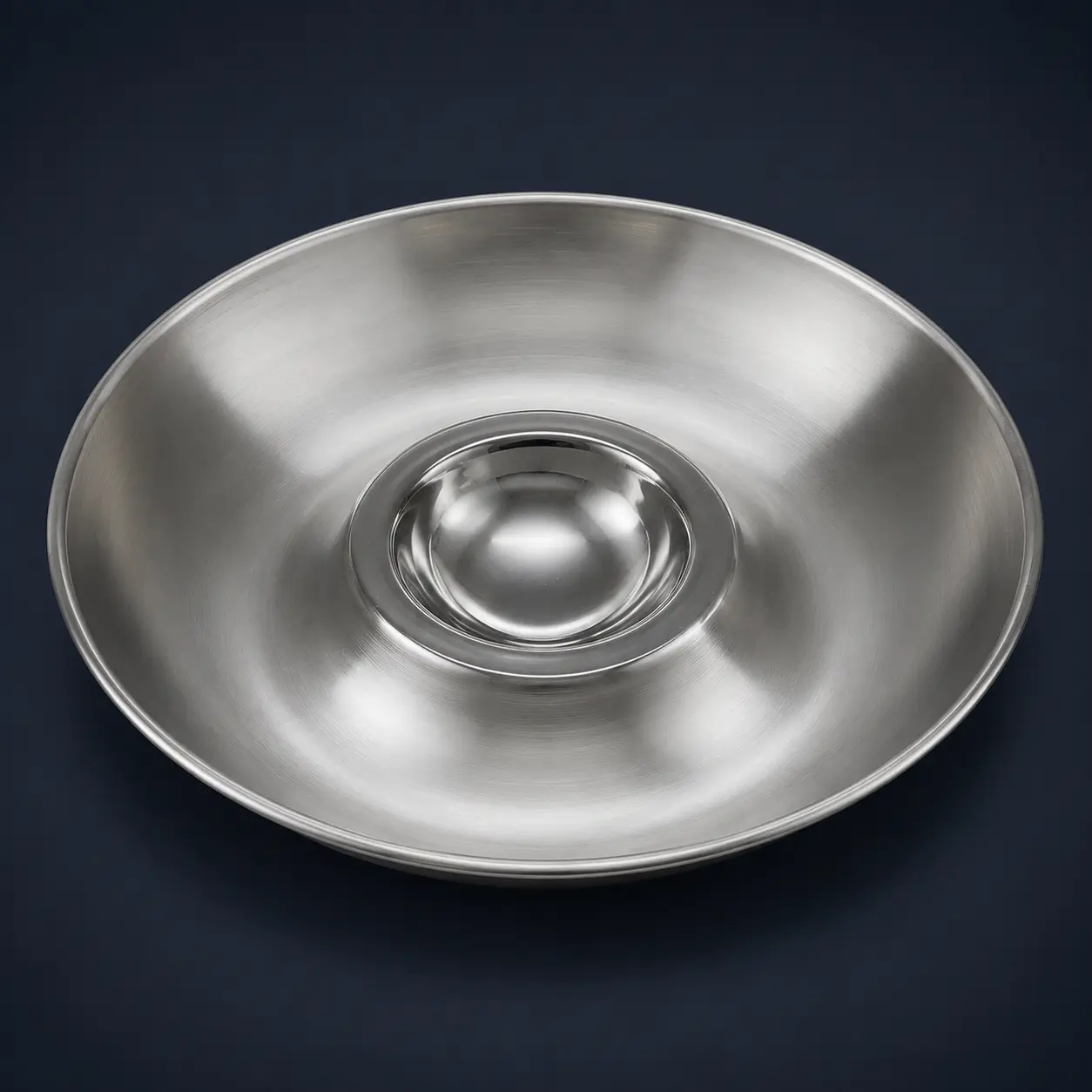

Integrated center-bowl platters stamped from a single sheet, optimizing service efficiency for banquets and catering.
Integrated Cavity · Mirror Finish · OEM Custom

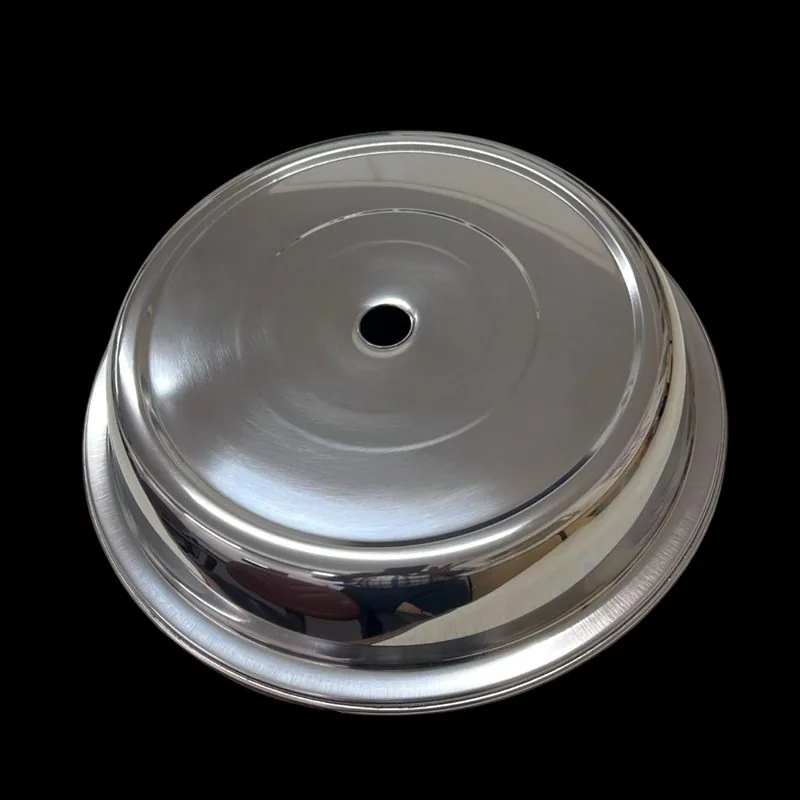

Precision-drawn dome covers providing clean heat retention and presentation for room service and banquet plating.
Deep Stamped Dome · Mirror Polish · Standard Sizes
Manufacturing white-label components for international cookware brands, private-label importers, and appliance manufacturers. Full export documentation and port proximity ensure seamless cross-border shipping.
Shipment documentation includes: Certificate of Origin, Commercial Invoice, Detailed Packing List, Mill Test Certificates (MTR), and Buyer-Nominated Freight Forwarder Integration.
Answers to key technical, procurement, and quality questions for international sourcing teams.
Induction cooktops heat by inducing magnetic eddy currents inside ferromagnetic metal. SS 304 is austenitic and non-magnetic, meaning it will not generate heat on an induction hob. SS 430 is ferritic, providing high magnetic permeability necessary for induction heating while delivering deep-draw formability and corrosion resistance.
Yes. All dies, punches, and press tools are cut in-house from your technical drawings, CAD files, or physical reference samples. Outer diameters, perforation geometry, center hole cutouts, edge curvature, and logo embossing are manufactured strictly to buyer specifications.
Yes. Mill Test Reports detailing chemical composition and mechanical properties of the SS 430 or SS 304 raw coil stock are supplied per production batch to support incoming QC inspection and international regulatory compliance audits.
Circle-cut raw blanks are classified under HS Code 7220 9090. Finished stamped components, embossed induction base plates, and formed lids fall under HS Code 7326 9099. Both classifications are fully supported with complete export documentation.
MOQ is determined based on part geometry, tooling complexity, and raw material weight requirements rather than arbitrary rigid numbers. We accommodate initial qualification runs, first-article pilot batches, and recurring monthly OEM programs.
Yes. We operate exclusively as a build-to-print B2B component supplier. Your custom tooling is reserved exclusively for your production runs. Our brand name does not appear on your components, products, or retail packaging.
